Description

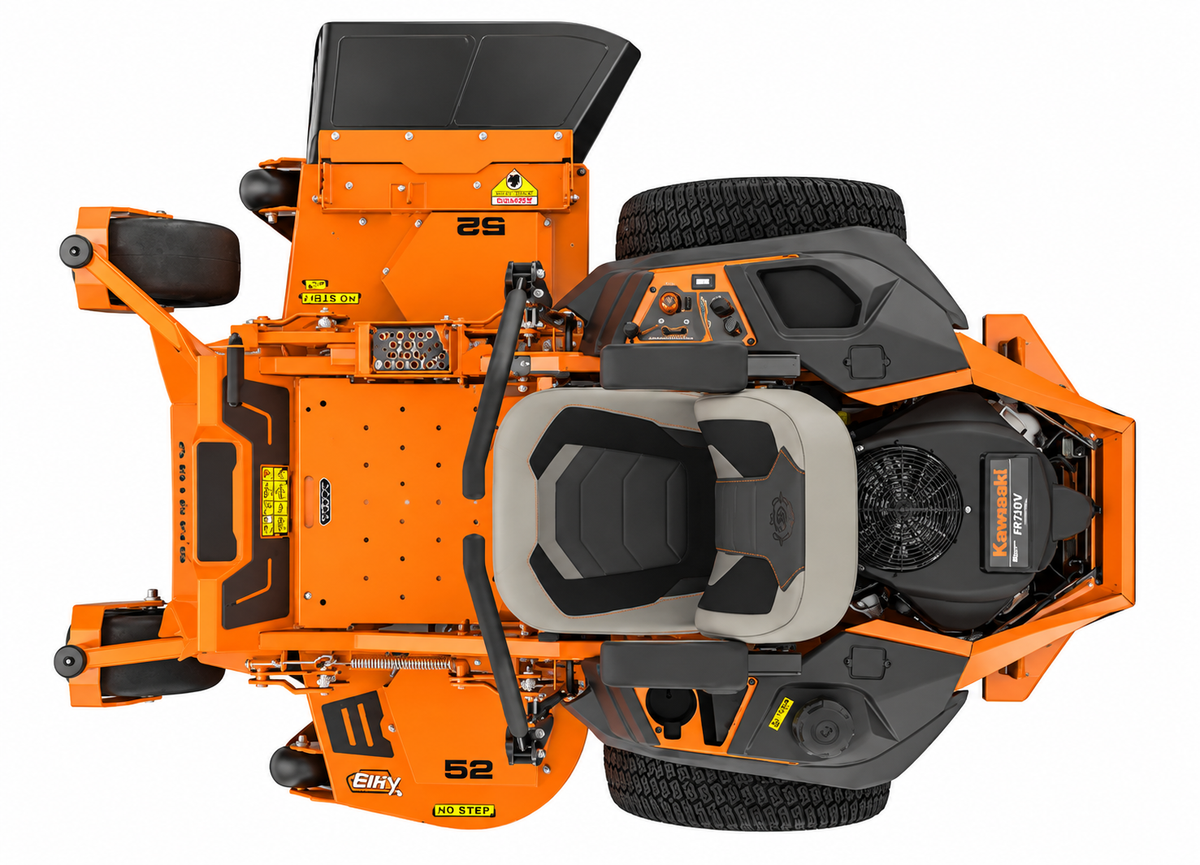

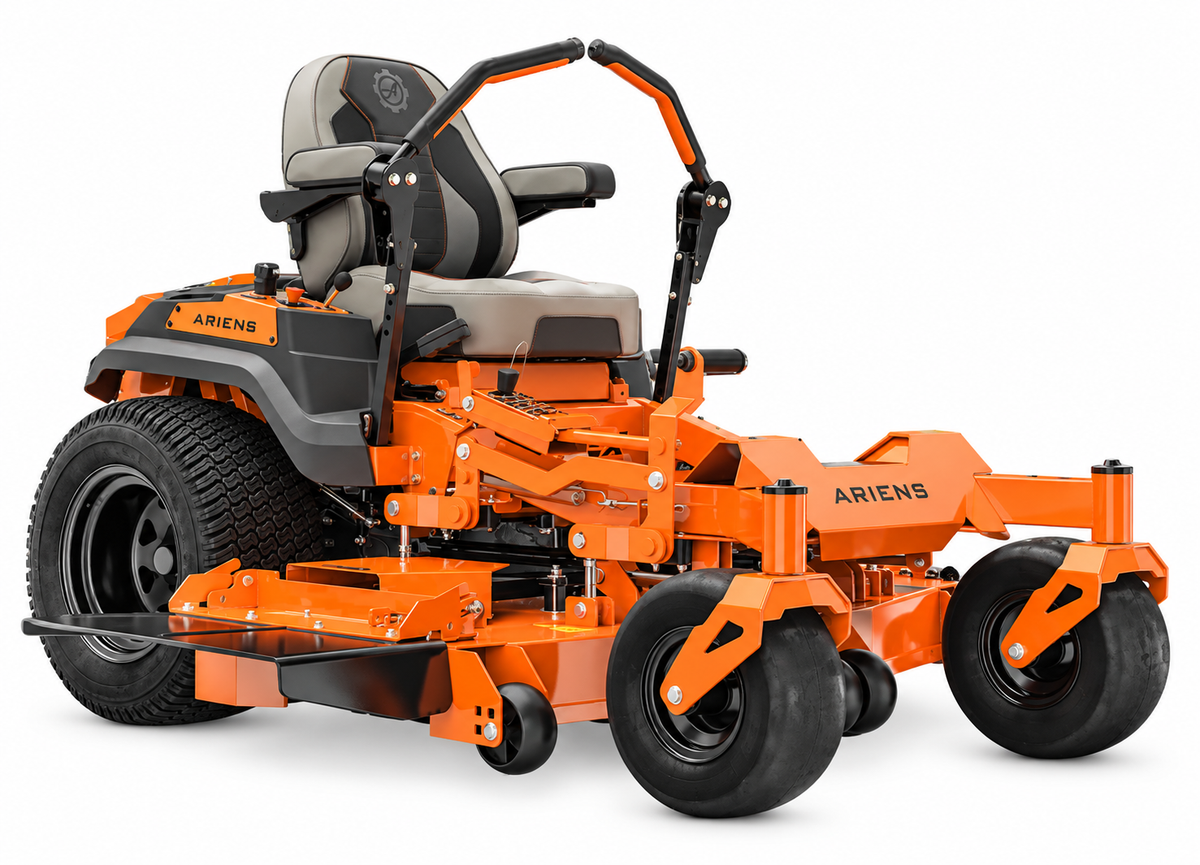

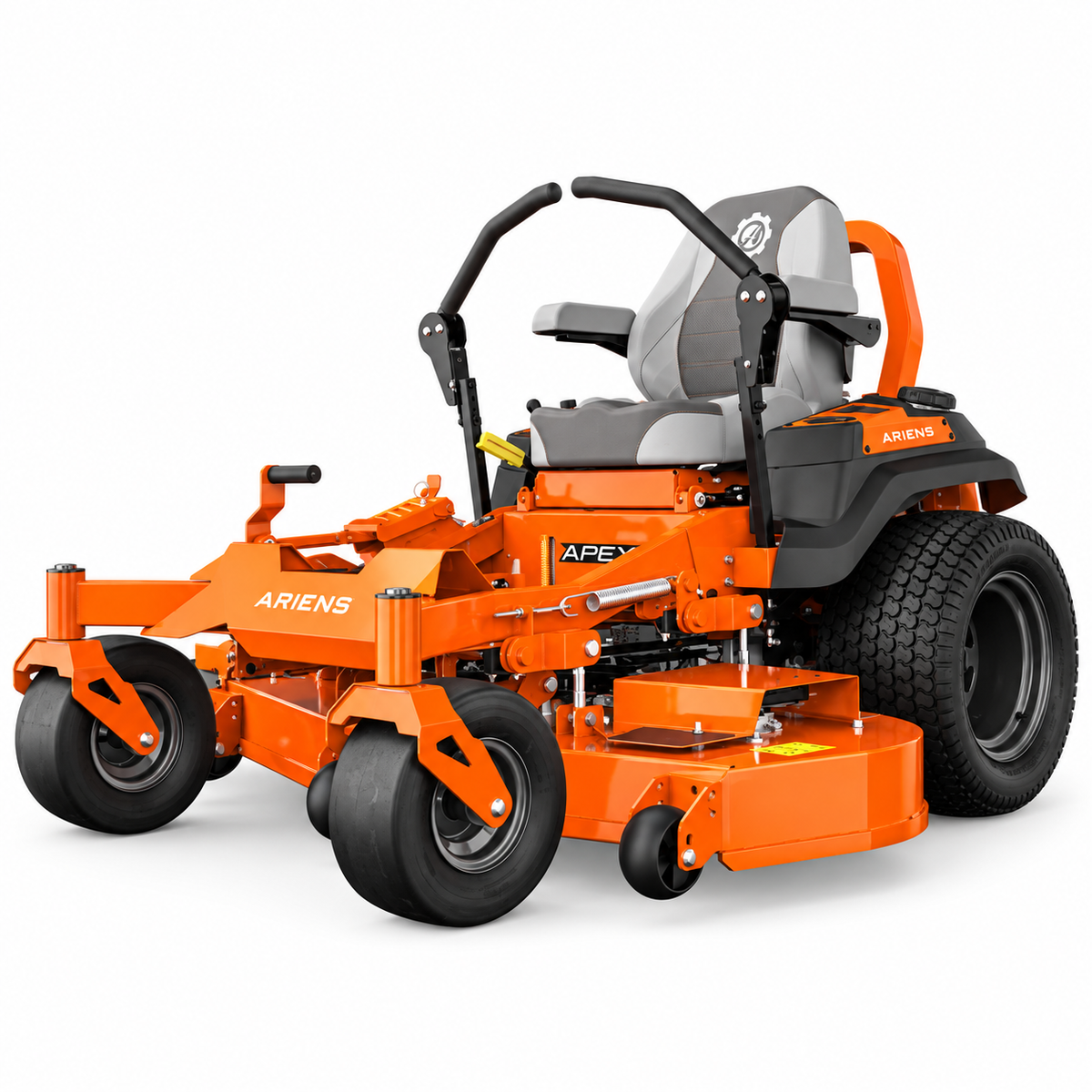

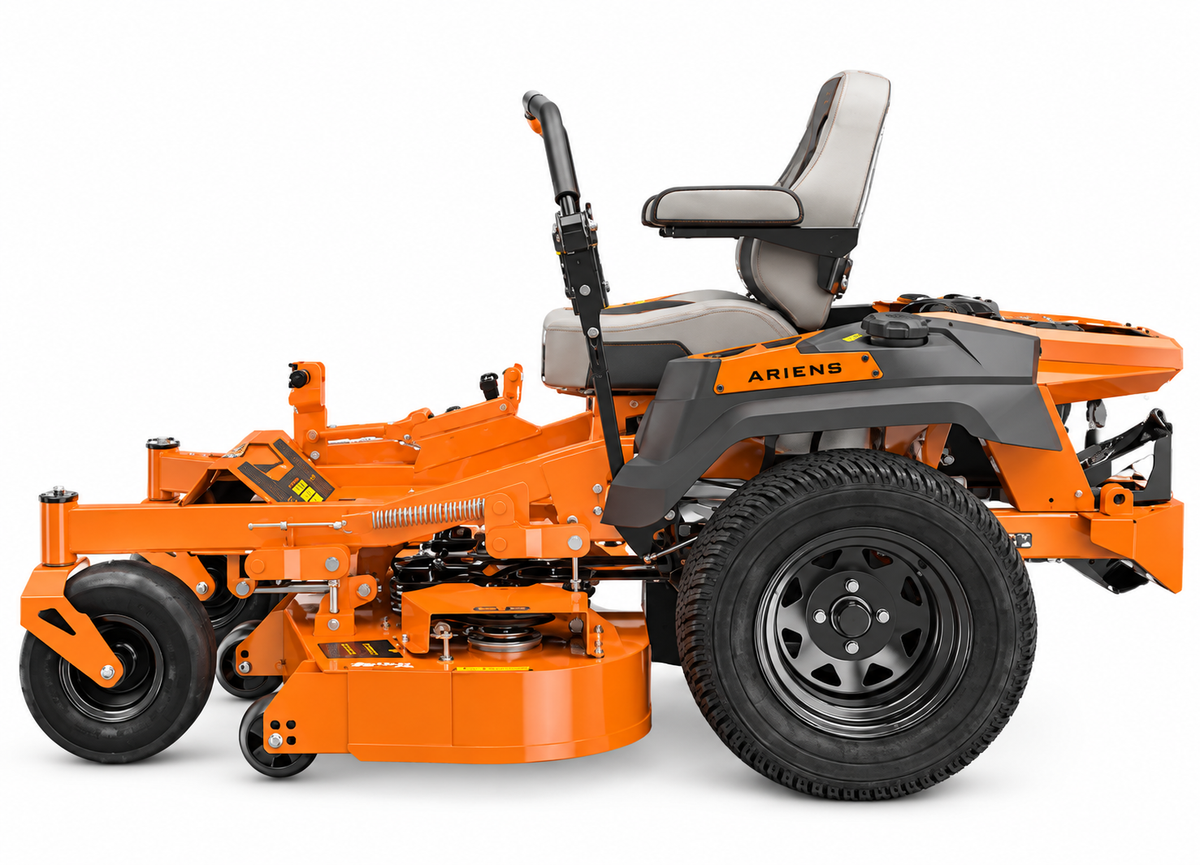

The Ariens APEX 52 in. 23 HP Kawasaki FR691V V-Twin Zero-Turn Riding Lawn Mower combines a powerful Kawasaki engine, heavy-duty fabricated cutting deck, and commercial-style hydrostatic drive system for efficient residential lawn maintenance.

Powered by a 23 HP Kawasaki FR691V V-Twin engine with 726cc displacement, the APEX 52 provides strong, consistent power for maintaining larger lawns. Electric starting provides convenient operation, while the 5.1-gallon fuel tank supports extended mowing sessions.

The 52-inch ENVY Elite Cutting System features a deep-profile fabricated deck constructed from 10-gauge steel. The deck provides 15 cutting-height positions ranging from 1.5 to 5 inches in 0.25-inch increments, allowing the operator to adapt the mower to different grass conditions and preferred cutting heights.

Dual Hydro-Gear ZT-3100 transmissions provide smooth independent wheel control and true zero-turn maneuverability. The mower can travel at speeds of up to 8 mph forward and 4 mph in reverse, helping cover larger mowing areas efficiently.

A fully welded tubular-steel frame provides a durable structural foundation. The foot-operated deck-lift system makes cutting-height adjustments convenient, while an electric PTO clutch provides straightforward blade engagement from the operator position.

For operator comfort, the APEX features a 20-inch high-back seat with armrests and ergonomically designed steering controls. Large rear drive tires and front caster wheels support maneuverability across typical residential mowing terrain.

Key Features

• 23 HP Kawasaki FR691V V-Twin engine
• 726cc engine displacement
• Electric starting system
• 52-inch ENVY Elite Cutting System
• 10-gauge fabricated-steel mower deck
• Deep-profile deck design
• 15 cutting-height positions
• 1.5–5 inch cutting-height range
• 0.25-inch height increments
• Dual Hydro-Gear ZT-3100 transmissions
• Zero-turn maneuverability
• Maximum forward speed of 8 mph
• Maximum reverse speed of 4 mph
• Electric PTO clutch and brake
• Foot-operated deck lift
• Fully welded tubular-steel frame
• 20-inch high-back seat with armrests
• Ergonomic steering controls
• 5.1-gallon fuel capacity
• 22-inch rear drive tires

Product Specifications

Brand: Ariens
Series: APEX
Model / MPN: 991159
GTIN / UPC: 751058045153
Product Type: Zero-Turn Riding Lawn Mower
Engine: Kawasaki FR691V
Engine Type: V-Twin
Engine Displacement: 726cc
Engine Power: 23 HP
Starter: Electric
Battery: 12V
Cutting Width: 52 in.
Deck System: ENVY Elite Cutting System
Deck Construction: 10-Gauge Fabricated Steel
Cutting Height: 1.5–5 in.
Cutting Positions: 15
Height Increments: 0.25 in.
Transmission: Hydro-Gear ZT-3100
Maximum Forward Speed: 8 mph
Maximum Reverse Speed: 4 mph
Turning Radius: Zero-Turn
PTO: Electric PTO Clutch / Brake
Fuel Capacity: 5.1 gal.
Front Tires: 13 × 6.5-6
Rear Tires: 22 × 10.5-12
Overall Length: 79 in.
Overall Width: 67 in.
Overall Height: 47 in.
Weight: Approx. 816 lbs.
